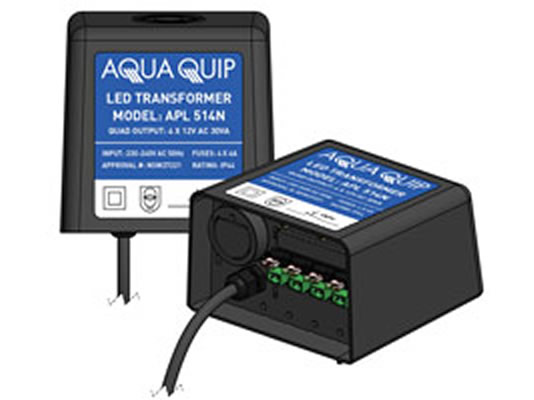

APL514N Four (4) port transformer Transformer

The Aqua-Quip Plug-in Four-Port Transformer APL514N delivers a safe, extra-low voltage power supply specifically engineered to operate Aqua-Quip’s range of LED Pool Lights.

To comply with AS/NZS 3000:2007 Clause 6.3.4.5, each underwater light in new pool constructions must be powered by an individual isolation transformer or a separate winding on an isolation transformer. This transformer is designed to meet these regulatory requirements while simplifying the installation of multiple LED pool lights, with the following specifications:

• Secondary Outlets: 4
• Maximum Number of Lights: 4
• Maximum Output per Light: 30 VA
• Input Voltage: 230-240V, 50Hz
• Output Voltage: 12V AC
• Rating: IP44
• Fuses: 4 x 4 Amp
• Approval: NSW27221
