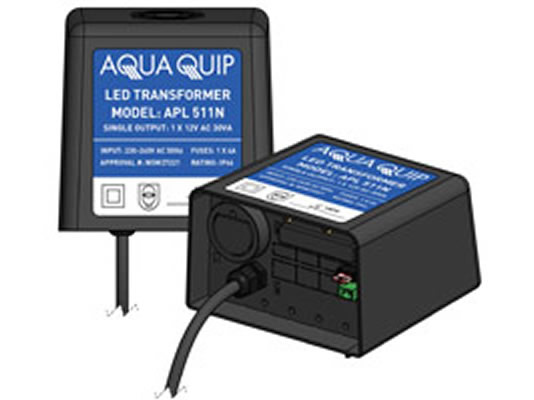

APL511N Single port transformer

The Aqua-Quip Plug-in Transformer APL511N delivers a safe, extra-low voltage power supply specifically designed for Aqua-Quip’s LED Pool Lights.

To comply with AS/NZS 3000:2007 Clause 6.3.4.5, each underwater light in new pool constructions must be powered by an individual isolation transformer or a separate winding on an isolation transformer. To meet these regulations and simplify the installation of multiple LED pool lights, the transformer features the following specifications:

• Secondary Outlets: 1
• Maximum Number of Lights: 1
• Maximum Output per Light: 30 VA
• Input Voltage: 230-240V, 50Hz
• Output Voltage: 12V AC
• Rating: IP44
• Fuses: 1 x 4 Amp
• Approval: NSW27221
